Union Eximo 802 Double Panic Bolt
SKU
WGRP-1274
Sign in or request an account to see prices.
For areas not accessed by the public where panic is not foreseen.
- Suitable for push face of outward opening doors
- Fixings to suit timber or metal doors
- CE marked to BS EN 1125
CE marked to BS EN 1125 Application
- For doors in buildings accessed by the public where panic can be foreseen
- Suitable for push face of outward opening doors
- For use on double doors with rebated meeting stiles
- Fixings to suit timber or metal doors
Specification
- Ease of adjustment in main units by means of top and bottom adjustable locator units
- Bo ttom rod unit already assembled - no cutting required
- Rods already fitted with round shoot bolts
- Spring loaded floor socket
- Non-handed for maximum flexibility
- Anti-vandalism - push bar retained in ha ndles
- Automatic top trip
- Downward pressure at any point on bar withdraws the bolts/latch ensuring immediate release of door
- Top rod and push bar can be cut to size to suit door dimensions

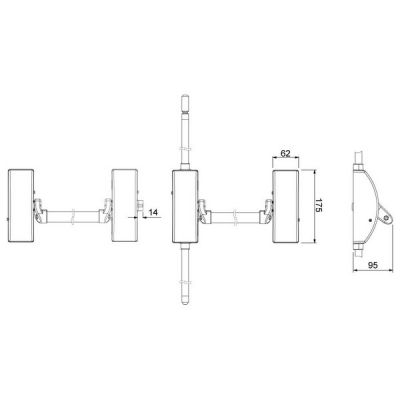

- Bolt projection: 14mm
- Anti-thrust
- Adjustable top & bottom shoots
- Complete with signage and pictorial fixing instructions
Max. Door Leaf Width: 1300mm
Max. Door Height: 2440mm
Max. Door Le af Mass: 200kg
| Brandname | Union |
|---|---|
| Colour | Silver |
| Handing | Reversible |
| Max - Door Height | 2440mm |
| Max - Door Width | 1300mm |
| Packaging Type | Display Box |
| Certification | BS EN 1125 |
