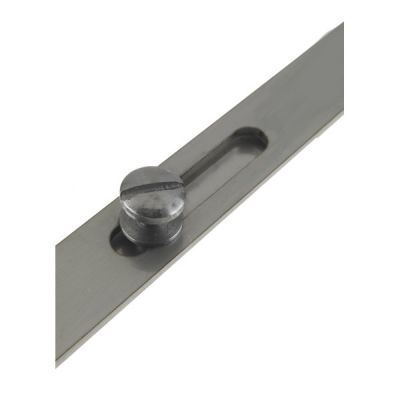

Yale Doormaster - Universal (MPL101/MPL102)
SKU
WGRP-1110
Sign in or request an account to see prices.
Replace 100% of PVCu door locks with a 35mm or 45mm backset and a 16mm faceplate.
- Operation: S/S
- 92mm PZ Lock Centre
- Faceplate: 16mm
Yale Doormaster Universal is designed to replace 100% of PVCu door locks with a 35mm or 45mm backset and a 16mm faceplate. With a combination of one hook and several easy-adjustment rollers the Universal lock uses the latest paten ted technology from Yale to ensure security and simplicity of installation.Universal: 2 Roller / 2 Mushroom. Supplied with a one piece keep.
- PZ Lock Centre: 92mm
- Faceplate: 16mm
- Operation: S/S
- Spindle: 1
- Case Height: 200mm
- Case Width: +15mm to Backset
- Shootbolt Compatible: No
Measurements: (Taken from centre of spindle except Overall Length)
Overall Length: 1500mm
Top Roller: 543mm
Top Mushroom: 643mm
Bottom Roller: 675mm
Bottom Mushroom: 575mm
| Brandname | Yale |
|---|---|
| Handing | Reversible |
| No. Deadbolts | 0 |
| No. Hookbolts | 1 |
| No. Mushroom | 2 |
| Operation | Split Spindle |
| No. Pins | 0 |
| No. Rollers | 2 |
| Packaging Type | Display Box |
| Size - Backset | 45mm |
| Size - Face Plate Width | 16 |
| Size - PZ | 92mm |
| Type | Repair |
