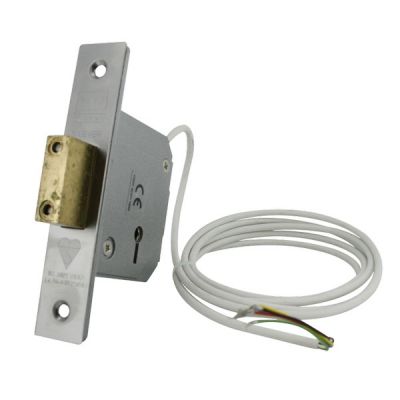

Union 3G114E BS Deadlock w/ Microswitch

SKU

WGRP-0941

Union 3G114E 5 lever deadlock. These locks conform to BS3621:2004 with 20mm Bolt for Insurance Approval and anti drill plates.

Complete with striking plate and fixings
Supplied with 2 keys
This model supplied with additional single or double pole microswitch for alarm/access control systems

Skip to the end of the images gallery

Skip to the beginning of the images gallery

SKU	Product Name
UN 3G114EDP/SC	Union 3G114E with D/Pole Microswitch
UN 3G114ESP/SC	Union 3G114E with S/Pole Microswitch

Details

More Information

Details

Union 3G114E 5 lever deadlock. These locks conform to BS3621:2004 with 20mm Bolt for Insurance Approval and anti drill plates. This model supplied with additional single or double pole microswitch for alarm/access control systems. Inclu des strike plate fixings and 2 keys.

Width: 67/80mm
Backset: 40/53mm
Lock Centres: N/A
Case Height: 77mm
Face Plate Height: 133mm

More Information

More Information
Brandname	Union
Colour	Satin Chrome
Cylinder Shape	UK Key
Handing	Non Handed
Monitor Switch	Yes
Packaging Type	Box
Certification	BS 3621:2007
Security Rating	5 Lever
Size - Backset	40mm
Size - High	77mm
Size - Width	67mm
Type	British Standard, Deadlock
