Winkhaus Cobra - 2 Hook (20mm Faceplate)
SKU
WGRP-0742
Sign in or request an account to see prices.

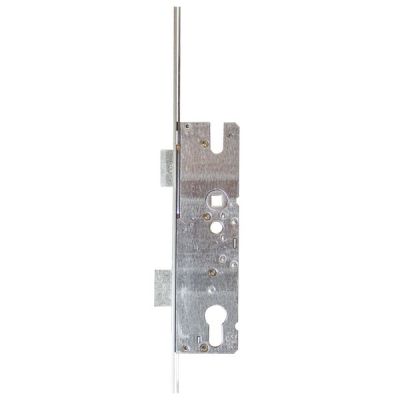

Winkhaus Cobra M2 MPL lock with 2 x hook bolts, central latch & deadbolt. For use on composite doors.
- PZ Lock Centre: 92mm
- Faceplate: 20mm (MPL256 - Square Ends/MPL259 & 260 - Round Ends)
- Operation: Split Spindle (S/S)
2 Hook. Latch and Deadbolt.
- PZ Lock Centre: 92mm
- Faceplate: 20mm (MPL256 - Square Ends/MPL259 & 260 - Round Ends)
- Operation: S/S
- Spindle: 1
- Case Height: 185mm
- Case Width: 53/64/73mm
- Shootbolt Compatible: No
Measurements: (Taken from centre of spindle except Overall Length)
Overall Length: 2105mm (45mm) 1770mm (35 & 55mm)
Top Hook: 735mm
Bottom Hook: 755mmHanded versions available on 45mm backset for a more precise fit.
| Brandname | Winkhaus |
|---|---|
| Handing | Reversible |
| No. Deadbolts | 1 |
| No. Hookbolts | 2 |
| No. Mushroom | 0 |
| Operation | Split Spindle |
| No. Pins | 0 |
| No. Rollers | 0 |
| Packaging Type | Loose |
| Size - Backset | 55mm |
| Size - Face Plate Width | 20 |
| Size - PZ | 92mm |
