Paddock Lockmaster - 2 Hook / 4 Roller (MPL234)
SKU
WGRP-0616
Sign in or request an account to see prices.

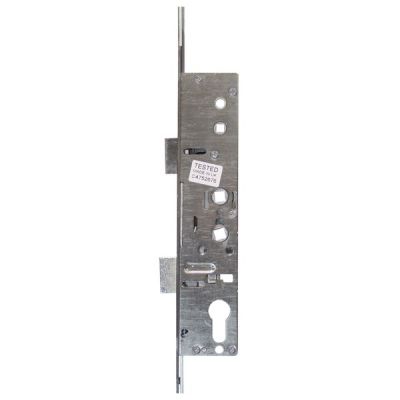

Paddock Lockmaster MPL lock with 2 x hook bolts, 2 x anti-lift pins, 4 x rollers, central latch & deadbolt.
- Available with Single or Twin Spindle gearboxes
- Faceplate: 16mm
Lockmaster: 2 Hook 2 Anti Lift Pin 4 Roller. Latch and Deadbolt.
- PZ Lock Centre: 62/92 or 92mm
- Faceplate: 16mm
- Operation: Twin Spindle (T/S) or Single ( L/L)
- Spindle: 2 (Unsprung)
- Case Height: 230mm
- Case Width: 50mm
- Shootbolt Compatible: No
*Note: Sprung handles are required for use with this lock.
&nbs p;
Measurements: (Taken from centre of spindle except Overall Length)Overall Length: 2195mm
Top Roller 1: 830mm
Top Roller 2: 530mm
Top Hook: 720mm
Bottom Roller 1: 950mm
Bottom Roller 2: 645mm
Bottom Hook: 770mm
| Brandname | Paddock |
|---|---|
| Handing | Reversible |
| No. Deadbolts | 1 |
| No. Hookbolts | 2 |
| No. Mushroom | 0 |
| Operation | Twin Spindle |
| No. Pins | 2 |
| No. Rollers | 4 |
| Packaging Type | Loose |
| Size - Backset | 35mm |
| Size - Face Plate Width | 16 |
| Size - PZ | 62/92mm |
