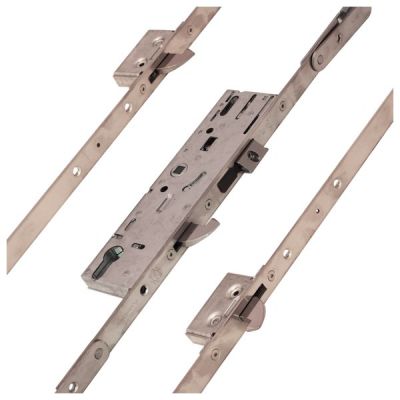

Doormaster Prof - Timber 45mm Backset
Replace 100% of locks with top and bottom hooks or bolts a 35m or 45mm backset and a 16mm or 20mm faceplate.
- Operation: Split Spindle (S/S)
- 92mm PZ Lock Centre
- Faceplate: 20mm
Yale Doormaster Professional is a High Security replacement lock designed to replace 100% of locks with top and bottom hooks or bolts a 35m or 45mm backset and a 16mm or 20mm faceplate. With three hooks and two rollers the Profession al has been tested to the Police Approved Secured By Design standard and is PAS 24 door set capable. Designed with the professional installer in mind this lock includes Crop and Mate technology to maximise the scope of installation. Severa l patented features plus the variety of faceplate widths makes the Professional Lock the ideal choice where a higher level of security is required - regardless of door material.Professional: 3 Hoo k / 2 Roller. Supplied with universal keeps. For use on Composite/Timber doors.
- PZ Lock Centre: 92mm
- Faceplate: 20mm
- Operation: Split Spindle (S/S)
- Spindle: 1
- Case Height: 215mm
- Case Width: 60mm
- Shootbolt Compatible: No
Measurements: (Taken from centre of spindle except Overall Length)
Overall Length: n/a
Top Hook: 385mm to 820mm
Top Roller: 485mm to 920mm
Bottom Hook: 408mm to 845mm
Bottom Roller: 508mm to 945mm
| Brandname | Yale |
|---|---|
| Handing | Reversible |
| No. Deadbolts | 0 |
| No. Hookbolts | 3 |
| No. Mushroom | 0 |
| Operation | Split Spindle |
| No. Pins | 0 |
| No. Rollers | 2 |
| Size - Backset | 45mm |
| Size - Face Plate Width | 20 |
| Size - PZ | 92mm |
| Type | Repair |
