Doormaster Adjustable - 35mm Backset
Replace up to 90% PVCu door locks with top and bottom hooks or bolts a 35mm backset and a 16mm faceplate.
- Operation: Split Spindle (S/S)
- 92mm PZ Lock Centre
- Faceplate: 16mm
Yale Doormaster Adjustable is a High Security lock designed to replace up to 90% PVCu door locks with top and bottom hooks or bolts a 35mm backset and a 16mm faceplate. With three hooks and two rollers the Adjustable has been tested to the Police Approved Secured By Design standard and is PAS 24 door set capable. Its adjustable design utilises the latest patented technology from Yale to ensure the Adjustable lock is installer friendly making it the ideal choice where a higher level of security on a PVCu door is required.Adjustable: 3 Hook / 2 Roller. Supplied with universal keeps.
- PZ Lock Centre: 92mm
- Faceplate: &nbs p;16mm
- Operation: Split Spindle (S/S)
- Spindle: 1
- Case Height: 215mm
- Case Width: 50mm
- Shootbolt Compatible: No

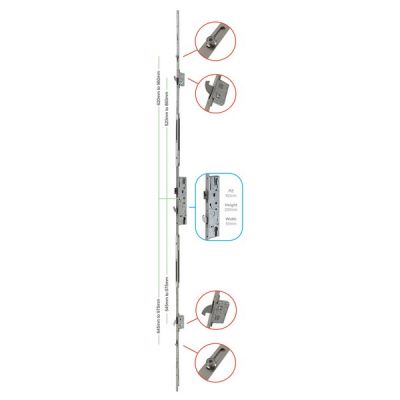

Measurem ents: (Taken from centre of spindle except Overall Length)
Overall Length: n/a
Top Hook: 52 0mm to 860mm
Top Roller: 620mm to 750mm
Bottom Hook: 545mm to 875mm
Bottom Roller: 645mm to 775mm
| Brandname | Yale |
|---|---|
| Handing | Reversible |
| No. Deadbolts | 0 |
| No. Hookbolts | 3 |
| No. Mushroom | 0 |
| Operation | Split Spindle |
| No. Pins | 0 |
| No. Rollers | 2 |
| Packaging Type | Display Box |
| Size - Backset | 35mm |
| Size - Face Plate Width | 16 |
| Size - PZ | 92mm |
| Type | Repair |
